Product Description

SFS-CC300 a special floor joist system machine that can give you increased production capacity for your projects. You will also benefit from improved installation efficiency with the standard flooring systems that with high yield strength and strong structure with the intelligent swage & ribbing function.

The Frametec auto-ribbing, swage and tab design allows for smooth joints, which allows the floor lining to sit flush to the joists easily. The floor cassettes can be built as modular units or easily assembled piece by piece in existing structures.

It offers a gauge range of 1.2 to 2.2mm thickness and 300mm width, able to produce up to 500m of floor joists per hour.

With the designing software and control software, the machine can automatic running and saving lots of time in drawing,material reporting, data entry, manufacturing, production record, and correcting all the errors.

Applications: floor joist for apartment, light commercial building, commercial building & etc.

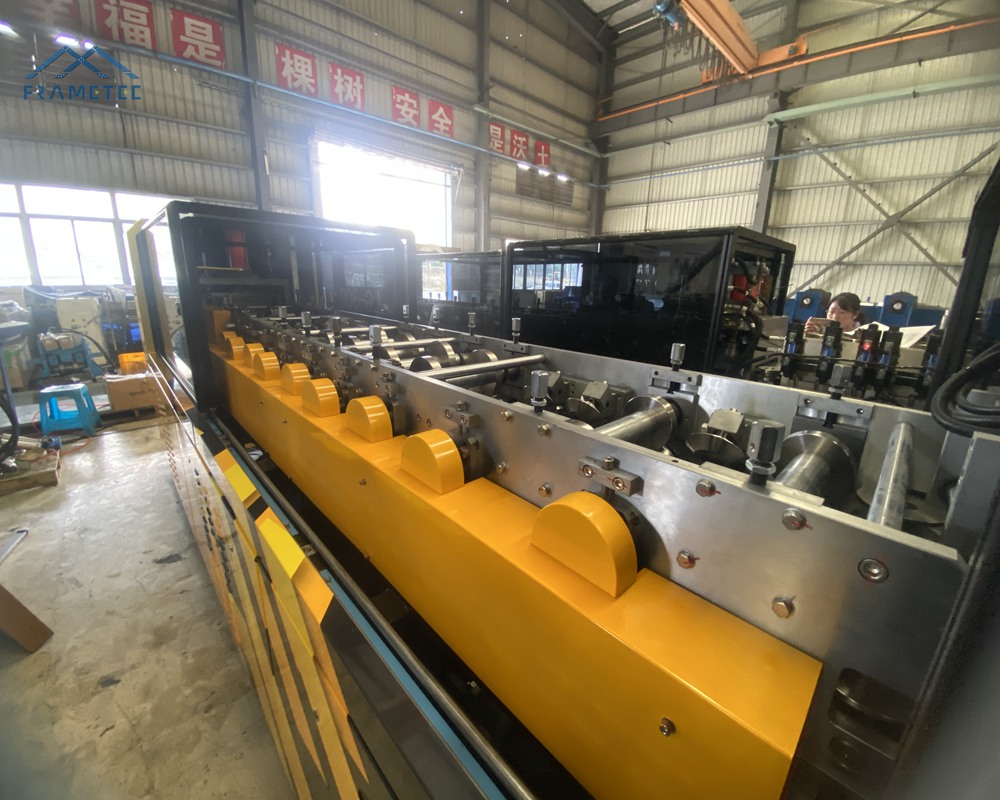

Full Automatic Light Gauge Steel Framing Machine SFS-CC300

Machine Part

Specifications

Profile ShapeC Shape
Profile Size300 mm
Material Thickness1.2-2.2 mm, G300-G550 Zinc-Alum Steel Coil
Operation System21 inches Touchable Screen
Production Control SystemSelf-devoloped Controlling Software
Design SoftwareVertex BD/ Framebuilder MRD / Strucsoft & etc.
Comprehensive  Machine Speed500 m/hr
Punching, Cutting Moulddimple hole, Web notch with clip, lip cut, service hole, web hole, fixing tab and shearing
Accuracy± 0.5 mm

II. Machine Video

III. SFS-CC300 Profile details

Full Automatic Light Gauge Steel Framing Machine SFS-CC300

IV. Applications

V. Why Choose FrameTec

FrameTec- a specialized manufacturer of high-quality roll-forming equipment for constructing light steel frame structures & cold-formed steel structures.

Since 2009, FrameTec insists on cooperating with customers as a partner and actively provides effective solutions to ensure reliable product performance, advanced technology and easy operation, and promote users to a higher position in the fierce market competition.

All Frametec machines have a built in Windows based machine control which accepts a basic CSV file from a range of design software options that link to our machine. This gives freedom of choice to the customer.

FrameTec specializes in Designing and Manufacturing Steel Framing Machines for Wall Panels, Trusses and Floor Joists in:

  • Residential and Commercial buildings
  • Steel framed systems for modular & prefabricated buildings
  • Walls framed for low and high rise buildings
  • Walling, floors, beams, roofing, kitchen & bathroom pods
  • Storage, recreational, transportable dwellings

FrameTec, the intelligent manufacturing solution provider for multi-storey prefabricated buildings !
