Features of the machine:
Our top hat roll forming machine consists of decoiler, feeding and levelling device, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system).
Long production line, good profile shape on final products; Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision.
Machine Quick Details | |
Model Application:Top Hat | Condition: New |
Type: Roll Forming Machine | Brand Name: Frametec |
Applicable Materials: PPGI | Forming Speed: 20-25m/min |
Warranty: 1 year | Place of Origin: China |
Flow chart: Decoiler—manual-pre-cut–feeding & guiding—rorming—-hydraulic cutting—out table
PROFILE
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418213.jpg)
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418522.png)
MATERIAL:
1)Material : Galvanized sheet, cold rolled sheet
2)Width: 30-80mm, flange: 40-150mm, lips: 15-50mm
3)Yield strength 245-550MPA
4) Suitable Coil Thickness: 0.7-2.0mme
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418971.png)
Main Components:
1. De-coiler with coil car and coiler feeder
- De-coiler: Hydraulic de-coiler with snub arm
- Control type: Electric button control
- Function: Auto rotation feed sheets into next station
- Weight of de-coiler: around 1 Ton
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418485.png)
2. Roll-Forming M/C:
- The main frame of machine is welded separately and the outside wall is connected by screw after being roto blasted on the surface.
- Roller Material is high grade No.45 forged steel, with digital-controlled procession.
- Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
- The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensures long life of forming rollers.
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418996.png)
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418679.png)

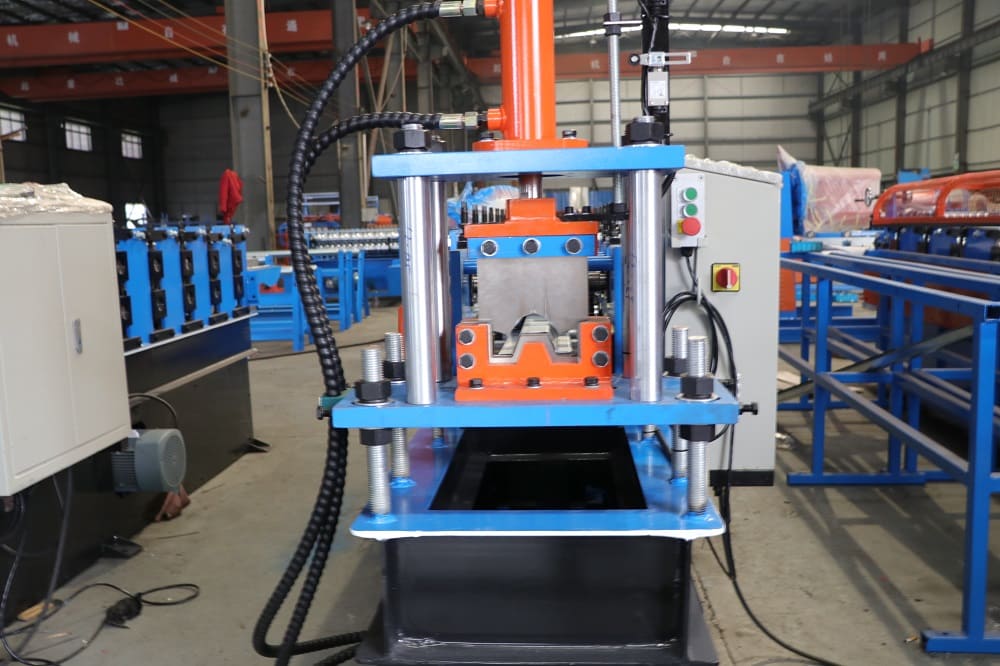

3. Hydraulic Post Cutting
1) Adopts post cutting, Stop when cutting;
2) The cutting blade material is Cr12 with quenched treatment.
2) Adopts welded frame for good rigidity.
4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm;
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418480.png)
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418322.png)
4. Hydraulic station:
1) It supplies the power for the hydraulic cutter.
2) All hydraulic accessories are all use Chinese or importing famous brand products.
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418537.jpg)
5. Profile Stack
Un-power, total 3 units, with roller on top stack for easy movement
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418751.jpg)
Machine Packing
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418570.jpg)
Profile effects:
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418967.png)
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418983.png)
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418576.png)
![Top Hat Roll Forming Machine](https://www.frametecforming.com/wp-content/uploads/2023/04/20230418823.png)
Why Choose us:
- 13 years’ manufacturing experience in high quality equipment for cold formed steel structures.
- Competitive price and good quality
- One year free warranty
- Fast response of after sale service
- Can be customized by clients’ requirements
- Easy operate and easy to maintain
- Self-developed of post cutter, one blade to cutter all size of final products
