Features of CZ purlin machine:
SX10 CZ purlin machine – a high-quality and cost-effective model for CZ interchangeable machines that range from 75-300mm. With 18 roll forming stations, it can efficiently produce CZ profiles with precision and consistency. Its solid construction ensures high stability and durability, making it a reliable investment for your business.
The SX10 CZ purlin machine is designed for ease of operation, with user-friendly features that make it easy to adjust and operate. Its compact design saves valuable space in your workshop while offering exceptional performance.
Our machine is built to last, with top-quality materials and advanced engineering. It’s an investment that pays off for years to come, providing reliable and consistent production of CZ profiles.
We understand the needs of the market and have designed the SX10 CZ purlin machine to meet those demands. It offers unbeatable value for the price, making it an ideal choice for mid-range to high-end customers.
Invest in our SX10 CZ purlin machine and experience the benefits of top-quality manufacturing equipment at an affordable price.
| Machine Quick Details | |
| Model number: SX10 | Condition: New |
| Type: C/Z Purlin machine | Brand Name: Frametec |
| Max Production Capacity: 30m/min | Power(W): 18.5KW |
| Warranty: 1 year | Place of Origin: China |
Flow chart: De-coiler – Leveling device — pre- punching and pre-cutting – roll forming parts – stack
Main features of quickly change CZ purlin roll forming machine
The Advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size(C80-300/ Z120-300) without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
Main Components:
1. Hydraulic De-coiler
De-coiler Type: automatic fasten and loosen Weight capacity: 6T

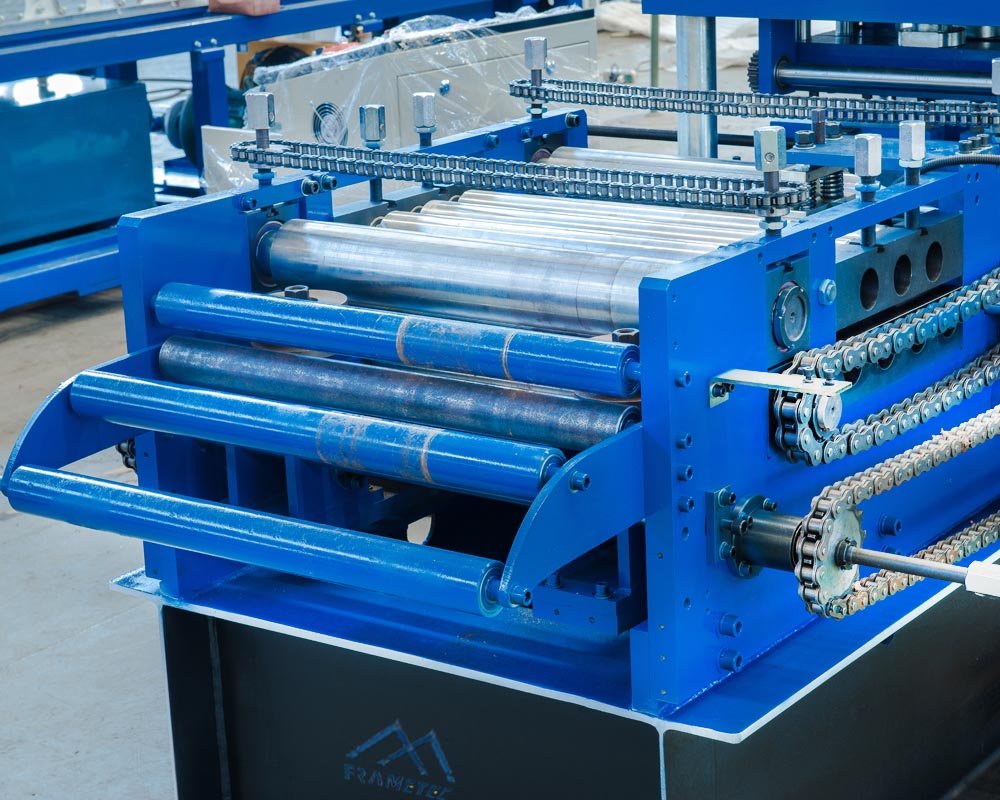

2. Feeding and Leveling Device:
It used for making the material flat before feeding into the roll forming machine.
3.Pre-punching device
Punch on flat sheet. PLC control punch quantity and horizontal position; vertical position adjust by manual.
Web punching quantity& size: as per customer`s requirement
Flange punching quantity&size: as per customer`s requirement
Punching bar and punching die can be changed easily
4.Pre-cutting device
It used to cut raw materials before roll forming.

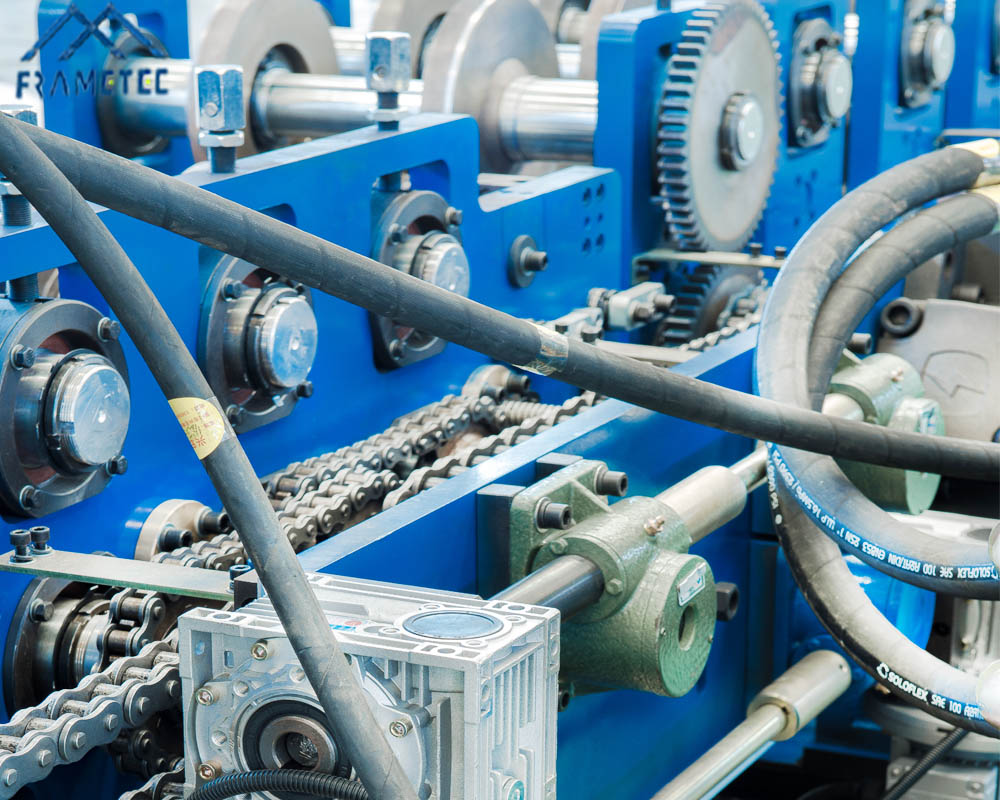

5.Main roll former
Driven type: By chain
Max Speed of forming: 30m/min
Roller : About 17 groups rollers
Roller Material is Cr12 mould steel;
Diameter of down roller is around 360mm
Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. Diameter of main shaft: ø95mm (as per final design)
Material of main shaft : 40Cr
Changing sizes: Automatic or Semi Automatic
Adopt fast C/Z interchanging system
Quick C/Z interchanging only with 3 steps,within 5 -15 mins.
6.Hydraulic Cutting
Adopt our innovative cutting system, CZ integrated & adjustable cutting mold do not need to replace cutting mold when purlin sizes change.
7.Product Support Frame —1set
8.PLC Control System
Control the quantity &punching length& cutting length automatically
The Machine will be stopped while it is punching and cutting

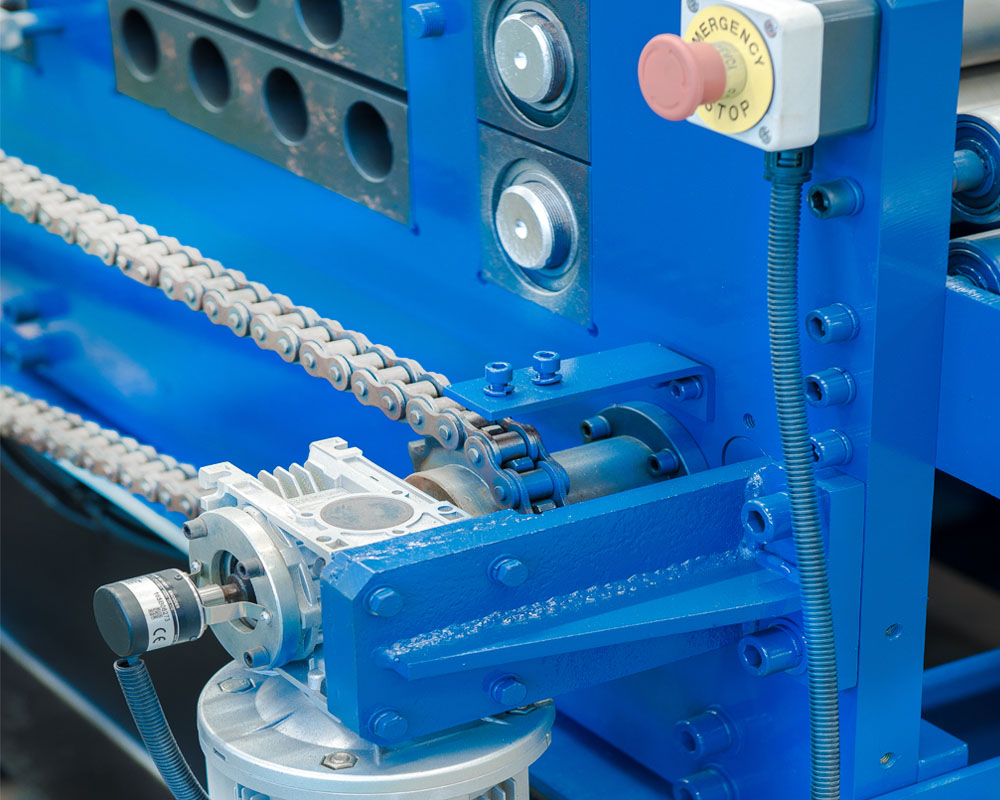

Automatic Length measures and quantity counting (precision +- 3mm)
Profile effect:
Our Factory
Why Choose us：
13 years’ manufacturing experience in CZ purlin roll former
Competitive price and good quality
One year free warranty
Fast response of after sale service
Auto web size changing from 80mm to 300mm in 2 minutes
Can be customized by clients’ requirements
Easy operate and easy to maintain
Self-developed of post cutter, one blade to cutter all size of final products
